Perfectly produced Gantry Crane is offering by us to the clients at most feasible rates. This crane is highly used in harbors and warehouses. These cranes are appreciated for their attributes like easy installation, light weight and simple structure. We offer these cranes in single and double main gantry cranes. These Gantry Cranes find high applications in handling and conveying equipment in mills, mines, harbors, and enterprise stations. Rational structure is of box construction, adequately designed and reinforced by stiffening ribs, to take care of all types of loading. This is connected by cross beams. The unbraced legs are hinged near the leg beam attachment. The complete structure is mounted on four wheelbase, each having one double rimmed steel wheels provided with flexible bushing to take care of any misalignment. The top beam is firmly fixed on heavily fabricated steel bracket. The crab carriage is in steel section. It is comprised of a special motor, connected to heavy-duty speed reducers and are coupled up to a grooved steel drum. Electromagnetic brakes / hydro-thruster brakes are used to control the smooth lifting of weight. The block is equipped with a steel forked revolving hook.
Wire Rope is of 6 x 37 construction. Access ladder leading, to inspection walkway, which runs along one beam and is made of walking surface with railing and foot-guard. Electric operations are controlled with push button control unit, independent of the position of Winch Trolley and sliding in loop through cable carriers. Limit switches for cross to ensure accident free operations.

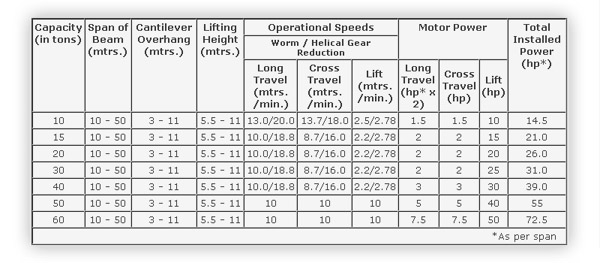

Technical Specification
